1251 1.00 mm Centerline Pitch Connectors PCB Connector 2PIN-15PIN
-1.25mm centerline pitch
-Discrete wire interconnect available in wire to board 2-15 positions for water and housing. Another optional 2-13 positions housing is also available.
-(SMT) Surface mount technology available design
-Available in tin or gold plating.
-UL94V-0 rated housings material

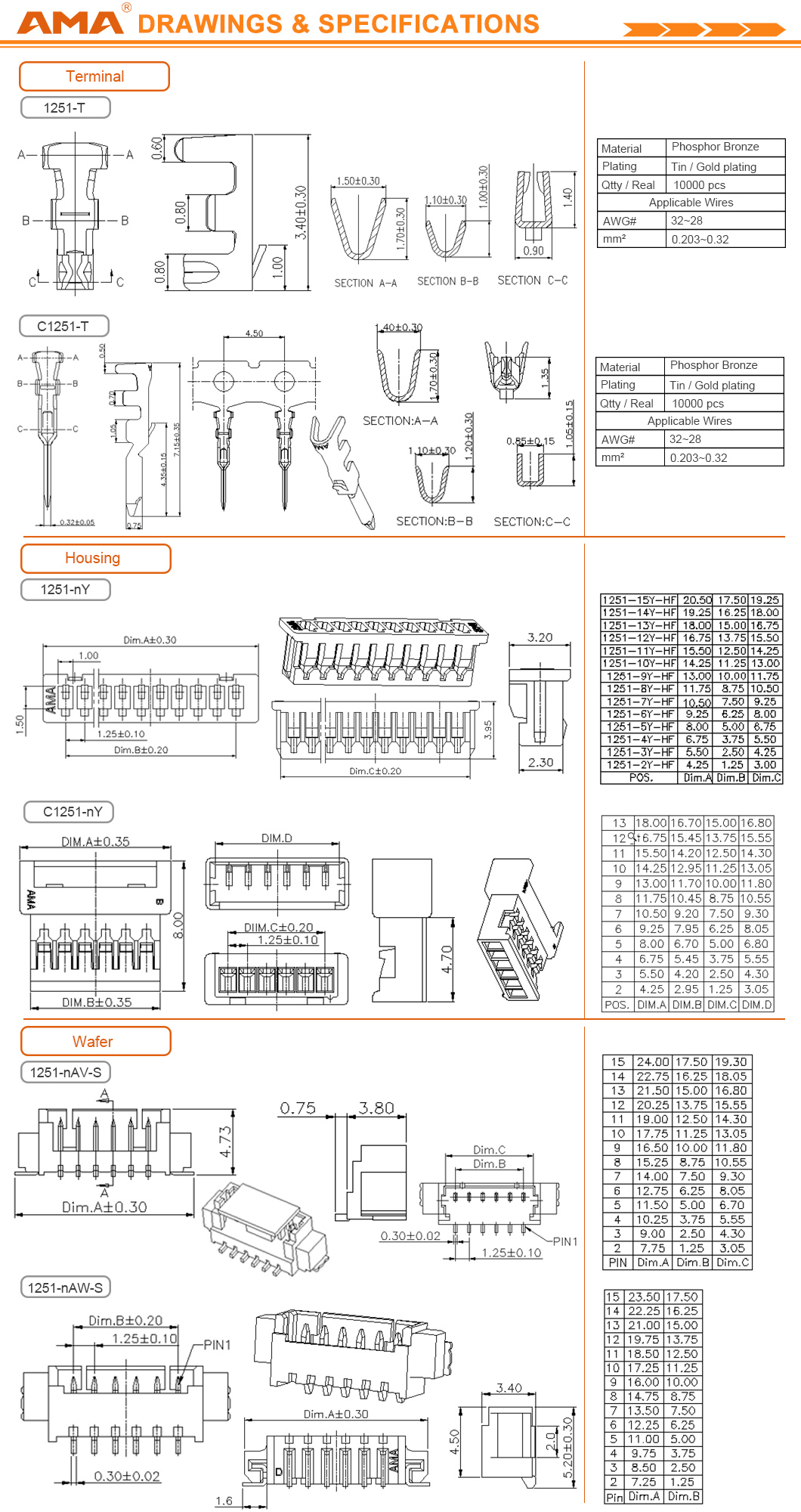

1251‐nY series
▲SPECIFICATIONS Unit:mm
△Current rating:1A AC/DC;
△Voltage rating:125V AC/DC;
△Temperature range:-25℃ to +85℃;
△Contact resistance:20 mΩ max;
△Insulation resistance:100 MΩ min;
△Withstanding voltage:250 VAC/minute;
C1251‐nY series
▲SPECIFICATIONS Unit:mm
△Current rating:1A AC/DC;
△Voltage rating:125V AC/DC;
△Temperature range:-25℃ to +85℃;
△Contact resistance:20 mΩ max;
△Insulation resistance:100 MΩ min;
△Withstanding voltage:250 VAC/minute;
1251‐T series
▲SPECIFICATIONS Unit:mm
△Current rating:1A AC/DC;
△Voltage rating:125V AC/DC;
△Temperature range:-25℃ to +85℃;
△Contact resistance:20 mΩ max;
△Insulation resistance:100 MΩ min;
△Withstanding voltage:250 VAC/minute;
C1251‐T series
▲SPECIFICATIONS Unit:mm
△Current rating:1A AC/DC;
△Voltage rating:125V AC/DC;
△Temperature range:-25℃ to +85℃;
△Contact resistance:20 mΩ max;
△Insulation resistance:100 MΩ min;
△Withstanding voltage:250 VAC/minute;
1251‐nAV‐S series
▲SPECIFICATIONS Unit:mm
△Current rating:1A AC/DC;
△Voltage rating:125V AC/DC;
△Temperature range:-25℃ to +85℃;
△Contact resistance:20 mΩ max;
△Insulation resistance:100 MΩ min;
△Withstanding voltage:250 VAC/minute;
1251‐nAW‐S series
▲SPECIFICATIONS Unit:mm
△Current rating:1A AC/DC;
△Voltage rating:125V AC/DC;
△Temperature range:-25℃ to +85℃;
△Contact resistance:20 mΩ max;
△Insulation resistance:100 MΩ min;
△Withstanding voltage:250 VAC/minute;
