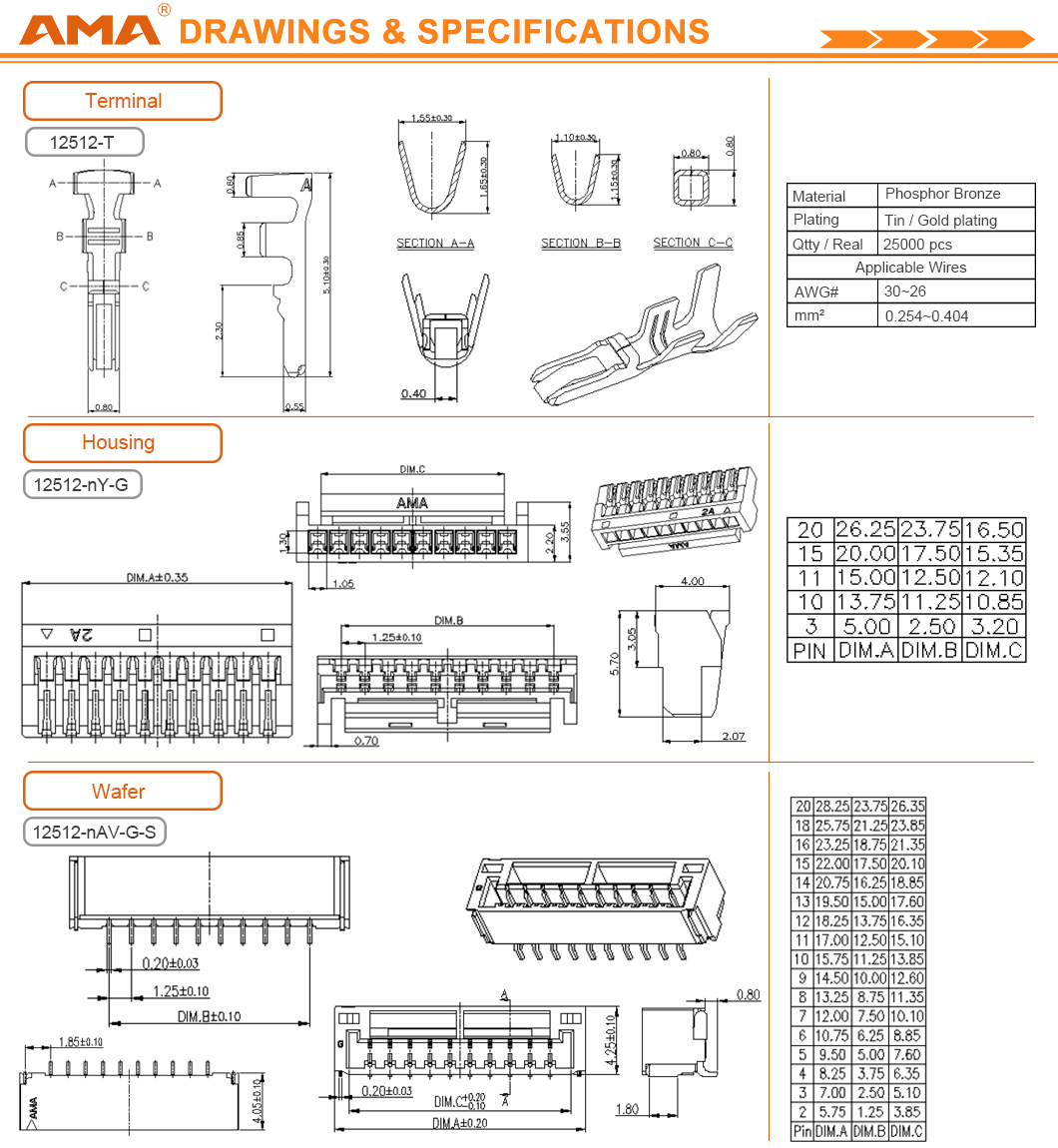

12512 1.25mm Centerline Pitch PCB Connector Board China Factories OEM
-1.25mm centerline pitch
-Discrete wire interconnect available in wire to board 2-15、20 positions for water and 3、10、11、13、15、20 positions for housing.
-(SMT) Surface mount technology available design
-Housing lock latch design
-Available in tin or gold plating.
-UL94V-0 rated housings material
12512-nY-G series
▲SPECIFICATIONS Unit:mm
△Current rating:1A AC/DC;
△Voltage rating:50V AC/DC;
△Temperature range:-25℃ to +85℃;
△Contact resistance:20 mΩ max;
△Insulation resistance:500 MΩ min;
△Withstanding voltage:500 VAC/minute;
12512‐T series
▲SPECIFICATIONS Unit:mm
△Current rating:1A AC/DC;
△Voltage rating:50V AC/DC;
△Temperature range:-25℃ to +85℃;
△Contact resistance:20 mΩ max;
△Insulation resistance:500 MΩ min;
△Withstanding voltage:500 VAC/minute;
12512‐nAW‐G‐S series
▲SPECIFICATIONS Unit:mm
△Current rating:1A AC/DC;
△Voltage rating:50V AC/DC;
△Temperature range:-25℃ to +85℃;
△Contact resistance:20 mΩ max;
△Insulation resistance:500 MΩ min;
△Withstanding voltage:500 VAC/minute;
