12513 1.25mm Centerline Pitch Connectors Male and Female Connector Set
-1.25mm centerline pitch
-Discrete wire interconnect available in wire to board 4-18 positions for housing.
-Available in tin or gold plating.
-UL94V-0 rated housings material

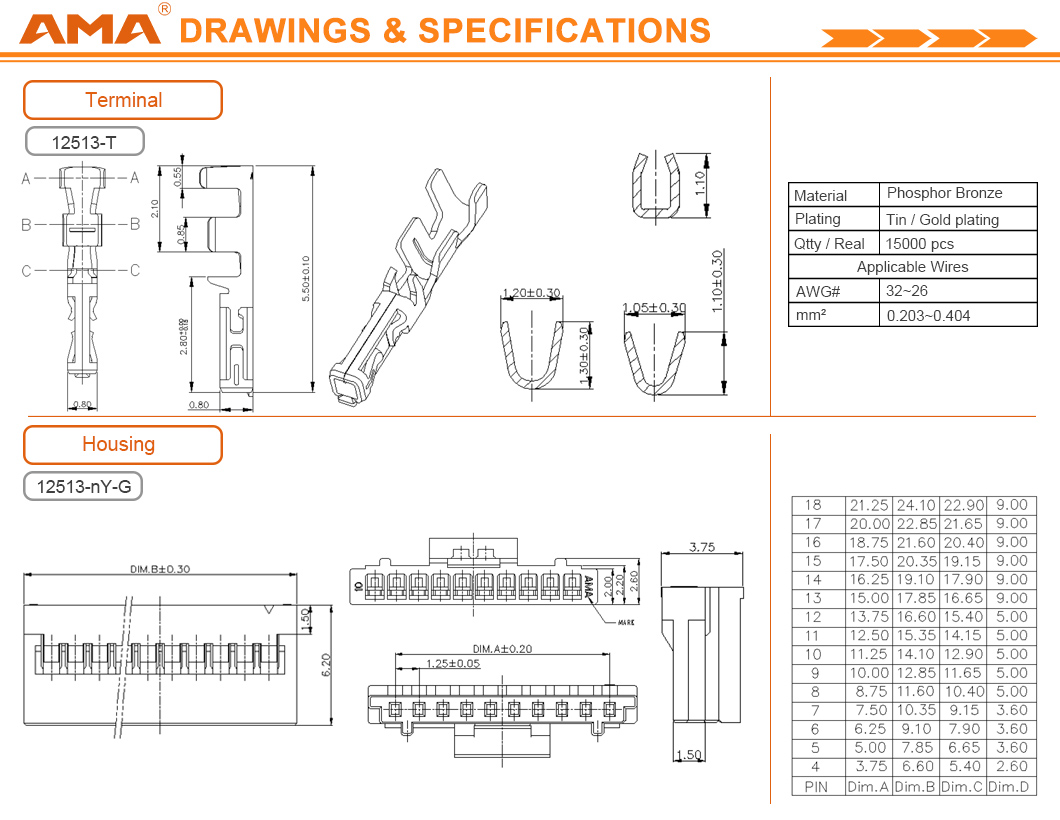

12513‐nY‐G series
▲SPECIFICATIONS Unit:mm
△Current rating:2.0A AC/DC；
△Voltage rating:125V AC/DC；
△Temperature range:-25℃ to +85℃；
△Contact resistance:30 mΩ max；
△Insulation resistance:100 MΩ min；
△Withstanding voltage:500 VAC/minute；
12513‐T series
▲SPECIFICATIONS Unit:mm
△Current rating:2.0A AC/DC;
△Voltage rating:125V AC/DC;
△Temperature range:-25℃ to +85℃;
△Contact resistance:30 mΩ max;
△Insulation resistance:100 MΩ min;
△Withstanding voltage:500 VAC/minute;
