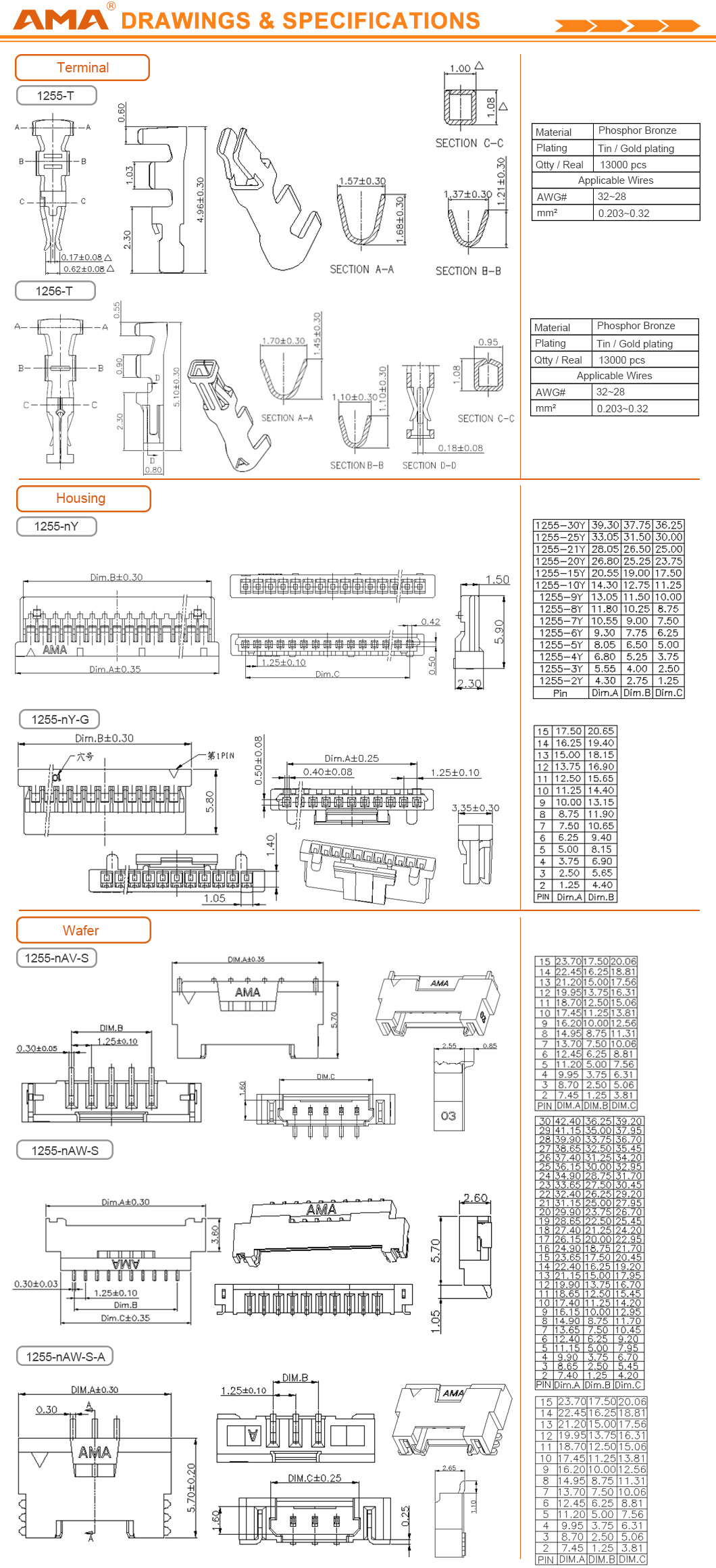

1255 PCB Connector1.25mm Centerline Pitch Connectors Wire To Board Connectors
-1.25mm centerline centerline pitch
-Discrete wire interconnect available in wire to board 2-15 positions for water housing.
-(SMT) Surface mount technology available design
-Housing lock latch design for housing.
-Available in tin or gold plating.
-UL94V-0 rated housings material
1255‐nY series
▲SPECIFICATIONS Unit:mm
△Current rating:1A AC/DC;
△Voltage rating:150V AC/DC;
△Temperature range:-25℃ to +85℃;
△Contact resistance:30 mΩ max;
△Insulation resistance:500 MΩ min;
△Withstanding voltage:500 VAC/minute;
1255‐nY‐G series
▲SPECIFICATIONS Unit:mm
△Current rating:1A AC/DC;
△Voltage rating:150V AC/DC;
△Temperature range:-25℃ to +85℃;
△Contact resistance:30 mΩ max;
△Insulation resistance:500 MΩ min;
△Withstanding voltage:500 VAC/minute;
1255‐T series
▲SPECIFICATIONS Unit:mm
△Current rating:1A AC/DC;
△Voltage rating:150V AC/DC;
△Temperature range:-25℃ to +85℃;
△Contact resistance:30 mΩ max;
△Insulation resistance:500 MΩ min;
△Withstanding voltage:500 VAC/minute;
1255‐nAV‐S series
▲SPECIFICATIONS Unit:mm
△Current rating:1A AC/DC;
△Voltage rating:150V AC/DC;
△Temperature range:-25℃ to +85℃;
△Contact resistance:30 mΩ max;
△Insulation resistance:500 MΩ min;
△Withstanding voltage:500 VAC/minute;
1255‐nAW‐S series
▲SPECIFICATIONS Unit:mm
△Current rating:1A AC/DC;
△Voltage rating:150V AC/DC;
△Temperature range:-25℃ to +85℃;
△Contact resistance:30 mΩ max;
△Insulation resistance:500 MΩ min;
△Withstanding voltage:500 VAC/minute;
1255‐nAW‐S‐A series
▲SPECIFICATIONS Unit:mm
△Current rating:1A AC/DC;
△Voltage rating:150V AC/DC;
△Temperature range:-25℃ to +85℃;
△Contact resistance:30 mΩ max;
△Insulation resistance:500 MΩ min;
△Withstanding voltage:500 VAC/minute;
