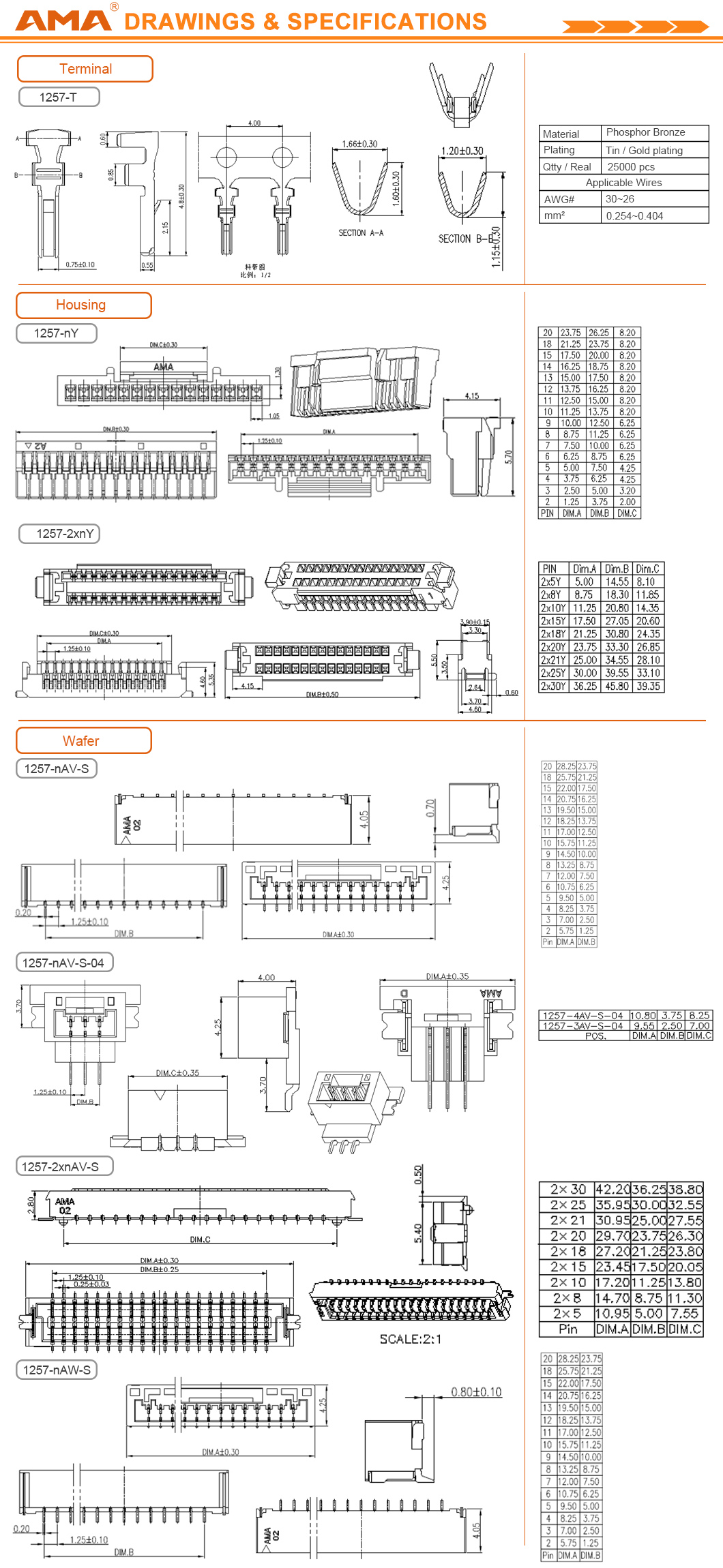

1257 1.25mm Centerline Pitch Connectors PCB Connector Wire To Board Connectors
-1.25mm centerline pitch
-Discrete wire interconnect available in wire to board 2-15 positions for water and 2-15、18、20 positions for housing.
-(SMT) Surface mount technology available design
-Available in tin or gold plating.
-UL94V-0 rated housings material
1257‐nY series
▲SPECIFICATIONS Unit:mm
△Current rating:1A AC/DC;
△Voltage rating:50V AC/DC;
△Temperature range:-25℃ to +85℃;
△Contact resistance:20 mΩ max;
△Insulation resistance:500 MΩ min;
△Withstanding voltage:500 VAC/minute;
1257‐2xnY series
▲SPECIFICATIONS Unit:mm
△Current rating:1A AC/DC;
△Voltage rating:150V AC/DC;
△Temperature range:-25℃ to +85℃;
△Contact resistance:30 mΩ max;
△Insulation resistance:500 MΩ min;
△Withstanding voltage:500 VAC/minute;
1257‐T series
▲SPECIFICATIONS Unit:mm
△Current rating:1A AC/DC;
△Voltage rating:50V AC/DC;
△Temperature range:-25℃ to +85℃;
△Contact resistance:20 mΩ max;
△Insulation resistance:500 MΩ min;
△Withstanding voltage:500 VAC/minute;
1257‐nAV‐S series
▲SPECIFICATIONS Unit:mm
△Current rating:1A AC/DC;
△Voltage rating:50V AC/DC;
△Temperature range:-25℃ to +85℃;
△Contact resistance:20 mΩ max;
△Insulation resistance:500 MΩ min;
△Withstanding voltage:500 VAC/minute;
1257‐nAV‐S‐04 series
▲SPECIFICATIONS Unit:mm
△Current rating:1A AC/DC;
△Voltage rating:50V AC/DC;
△Temperature range:-25℃ to +85℃;
△Contact resistance:20 mΩ max;
△Insulation resistance:500 MΩ min;
△Withstanding voltage:500 VAC/minute;
1257‐nAW‐S series
▲SPECIFICATIONS Unit:mm
△Current rating:1A AC/DC;
△Voltage rating:50V AC/DC;
△Temperature range:-25℃ to +85℃;
△Contact resistance:20 mΩ max;
△Insulation resistance:500 MΩ min;
△Withstanding voltage:500 VAC/minute;
1257‐2xnAV‐S series
▲SPECIFICATIONS Unit:mm
△Current rating:1A AC/DC;
△Voltage rating:150V AC/DC;
△Temperature range:-25℃ to +85℃;
△Contact resistance:30 mΩ max;
△Insulation resistance:500 MΩ min;
△Withstanding voltage:500 VAC/minute;
