1501 1.5mm Centerline Pitch Connectors PCB Connector Manufacturer OEM
-1.5mm centerline pitch
-Discrete wire interconnect available in wire to board 2-15 positions for water and housing.
-(SMT) Surface mount technology available design
-Available in tin or gold plating.
-UL94V-0 rated housings material

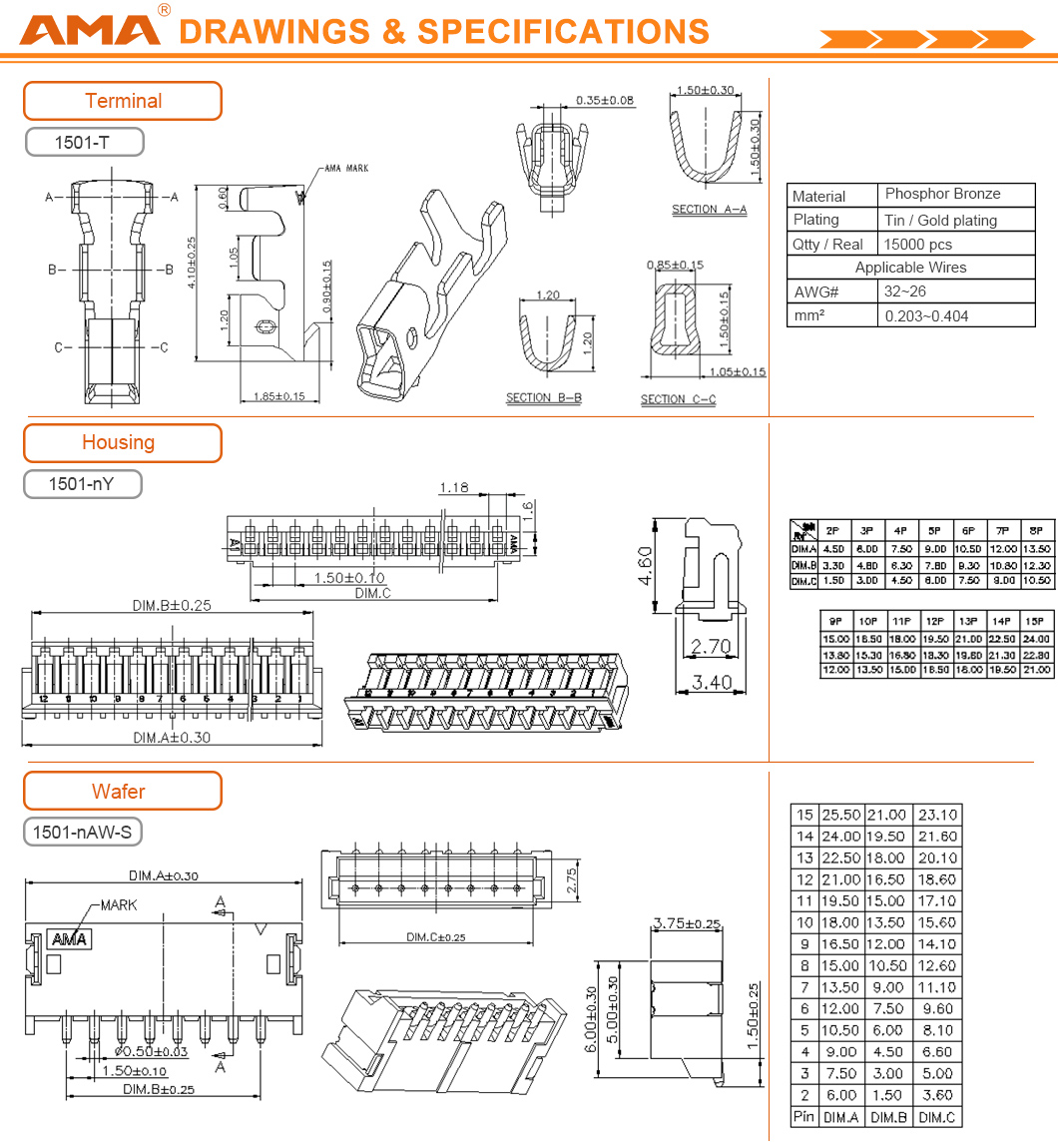

1501‐nY series
▲SPECIFICATIONS Unit:mm
△Current rating:1A AC/DC;
△Voltage rating:50V AC/DC;
△Temperature range:-25℃ to +85℃;
△Contact resistance:30 mΩ max;
△Insulation resistance:500 MΩ min;
△Withstanding voltage:500 VAC/minute;
1501‐T series
▲SPECIFICATIONS Unit:mm
△Current rating:1A AC/DC;
△Voltage rating:50V AC/DC;
△Temperature range:-25℃ to +85℃;
△Contact resistance:30 mΩ max;
△Insulation resistance:500 MΩ min;
△Withstanding voltage:500 VAC/minute;
1501‐nAW‐S series
▲SPECIFICATIONS Unit:mm
△Current rating:1A AC/DC;
△Voltage rating:50V AC/DC;
△Temperature range:-25℃ to +85℃;
△Contact resistance:30 mΩ max;
△Insulation resistance:500 MΩ min;
△Withstanding voltage:500 VAC/minute;
