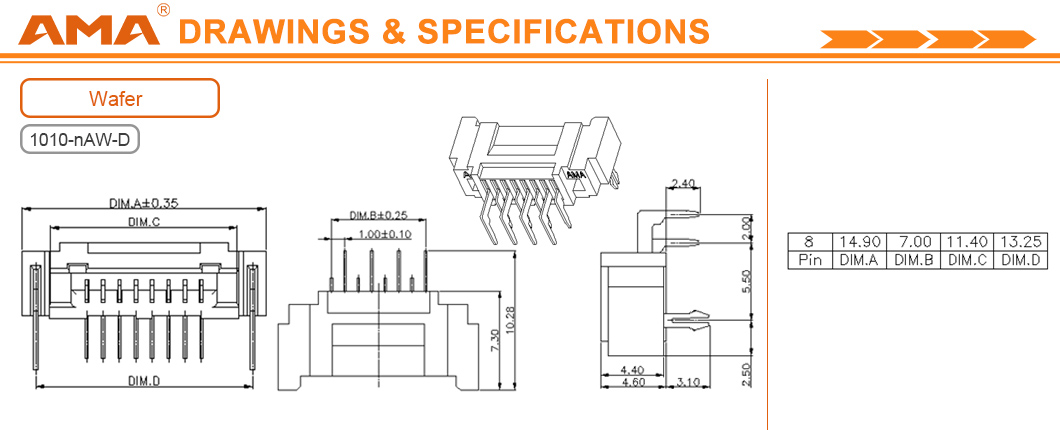

1010 1.00mm pitch Wire To Board Connector

▲SPECIFICATIONS         Unit:mm

△Current rating: 1A AC/DC;

△Voltage rating: 150V AC/DC;

△Temperature range: -25℃ to +85℃;

△Contact resistance: 50 mΩ max;

△Insulation resistance: 500 MΩ min;

△Withstanding voltage: 500 VAC/minute;
